A mezzanine adds a floor, and the design decides what that floor is worth to you. The same 4800 x 4800 module can be a storage deck, an office or a showroom depending on the edge, the access and what runs underneath it. These mezzanine floor design ideas come from floors we have built, with the details that made each one work.
Office over the operation
Lift the office onto a mezzanine and the ground floor goes back to what earns the money: stock, machines, vehicles. Glazing along the mezzanine edge keeps the manager in sight of the floor without the noise.
Design points: the standard 3 kPa rating covers office loads, a 3000mm floor height gives comfortable headroom on both levels, and the stairs belong near the entry so visitors do not walk through the workshop to reach reception.

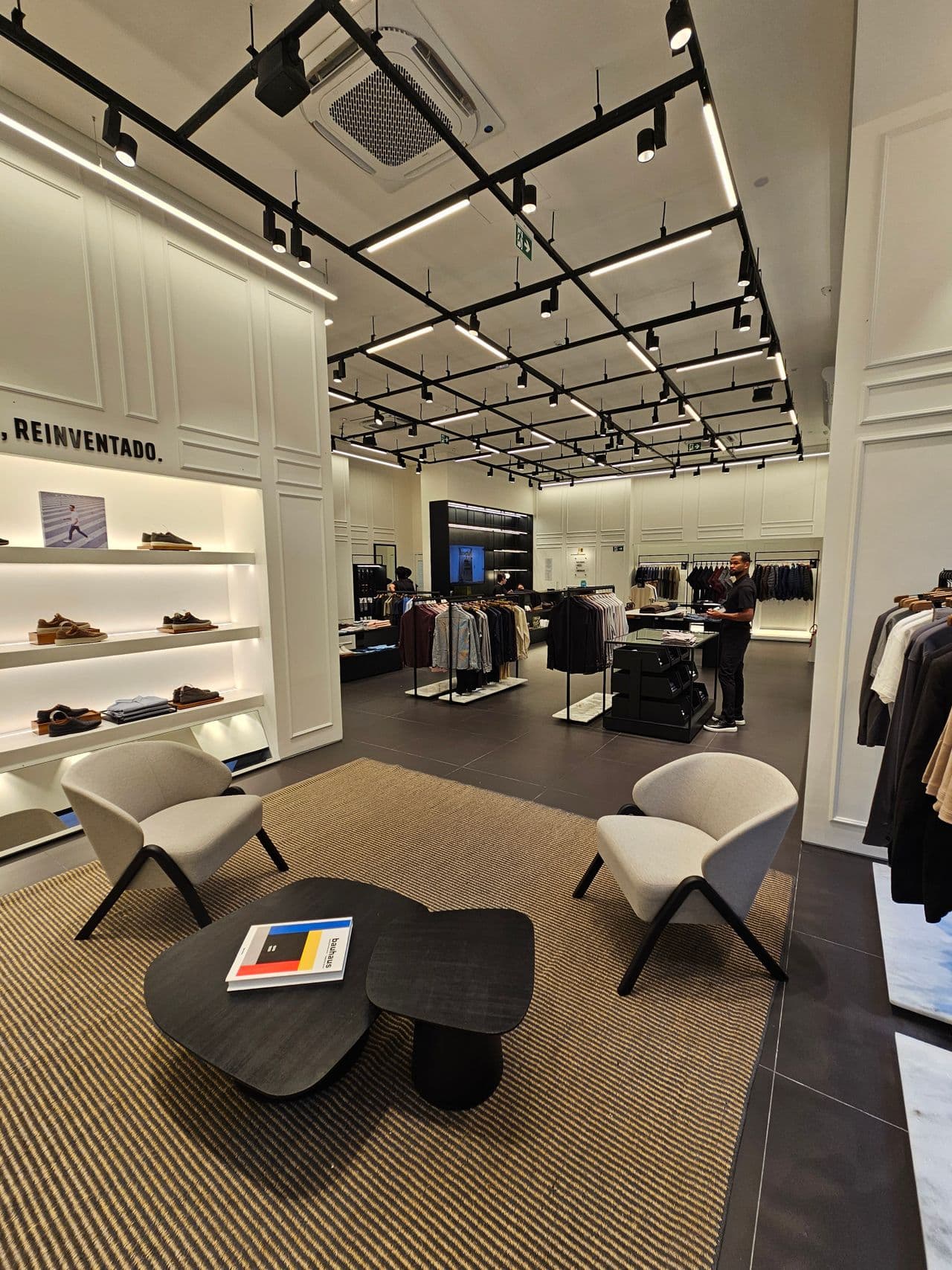

Showroom, display level or two-level retail
Retail and showroom mezzanines are about the view up and the walk up. Customers need to see the level exists and want to climb to it, so the stairs go in the open, wide, with a landing, and the edge is glazed or aluminium balustrade rather than industrial guardrail.
Powdercoat the steel in the brand colour, or white so it disappears against the ceiling. Heavy, slow-moving lines stay downstairs; the upper level takes the range that benefits from a quieter browse.
Staff room and amenities
A lunchroom, lockers and a quiet room take up ground floor that a forklift wants. On a mezzanine they are out of the traffic and out of the dust.
- Plan plumbing early if a kitchenette is going up: a waste pipe needs fall and a route down a column line
- Put it next to the office pod so one stair serves both
- Give the pod a window or two: a staff room with no natural light does not get used

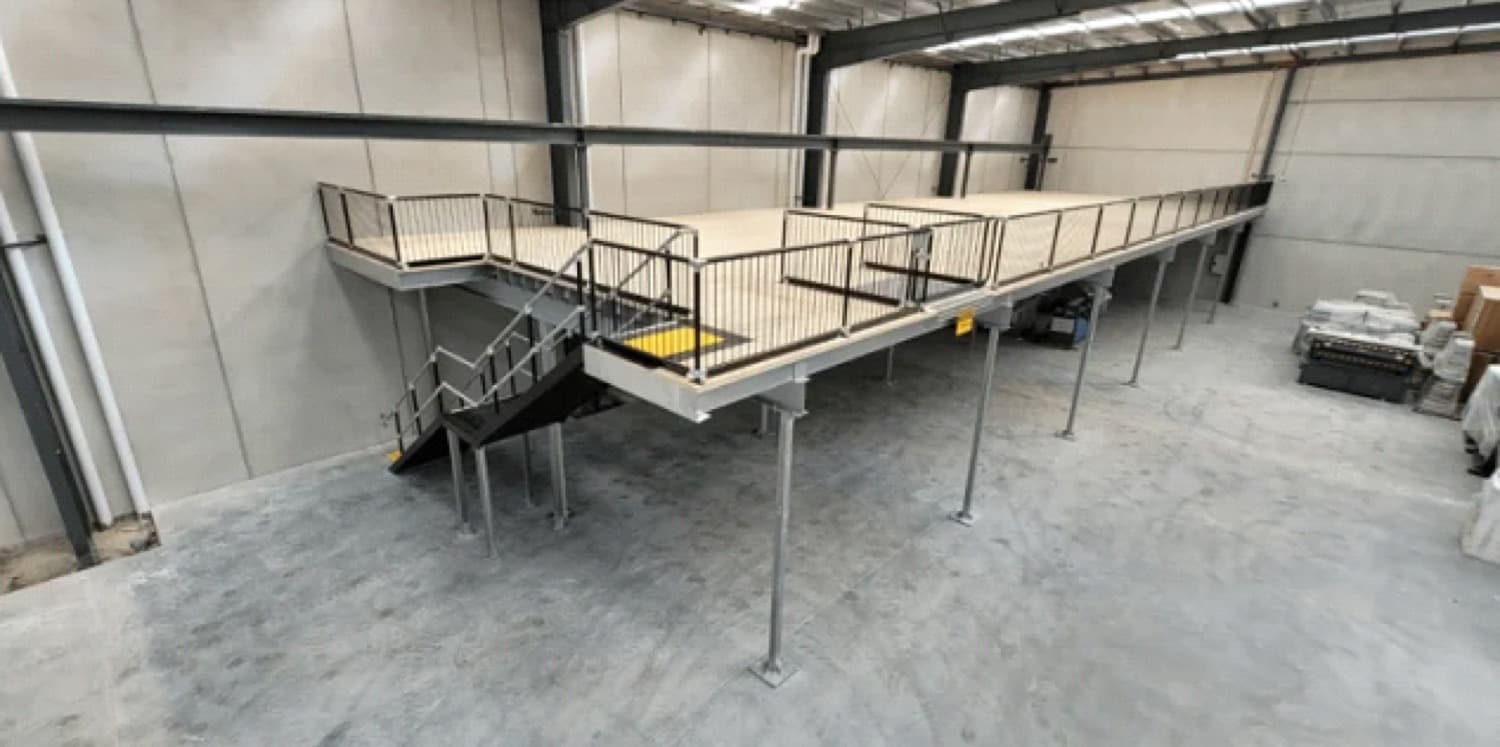

Storage with a pallet gate
Bulk storage is the simplest use and the one where design is most often skipped. Decide first how goods get up: by hand up the stairs, or by forklift through a pallet gate.
A rollover pallet gate keeps the edge closed while a pallet sits on the deck and while it is being loaded, which is the arrangement councils and insurers expect. Give it a clear landing zone of at least one pallet depth behind the gate. General storage sits within the standard 3 kPa rating; dense palletised stock may need a 5 kPa design.
Picking level with a conveyor or chute
For online retail and parts distribution a mezzanine can be a picking level: shelving on the deck, pickers walking the aisles, and a gravity chute or belt conveyor dropping orders to packing below.
- Locate the chute or conveyor where the packing bench already is, not where the deck edge is convenient
- Size the aisles for a picking trolley, not just a person
- Plan the return route for empties: a second small stair at the far end saves a lot of walking
Workshop or assembly platform
Light assembly, testing, packing and rework all suit a mezzanine because they need bench space, power and people rather than forklifts. Run power and data along the underside of the deck beams and drop to the benches through the deck.
Keep heavy or vibrating machinery at ground level. A mezzanine is designed for load spread across the deck, not a press bolted to one spot.
A mezzanine over the loading dock
The area around a roller door is usually the least used height in a building. Nothing is stored there because trucks and forklifts need the floor clear, so the air above it is free.
A mezzanine over the dock, set back so the truck canopy clears, gives you packaging storage directly above where packaging is used. Check the door track, motor and full-open position before the columns are set.

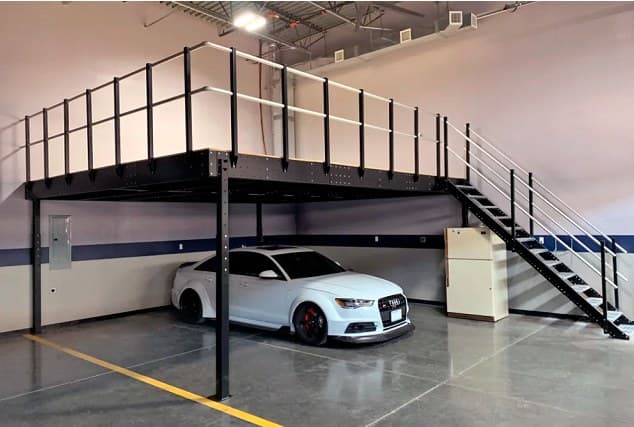

Colour and finish
Kitsets come in an industrial-grade primer, black or white, and both are a finished look in a warehouse. Powdercoat is the step up for anything customer-facing, and it is decided at order time because the steel is coated in the workshop, not on site.
- Black primer hides scuffs from pallets and trolleys
- White primer lifts the light under the deck, useful where the mezzanine covers a work area
- Powdercoat in a brand colour, or safety yellow on the columns in a forklift zone
- Intumescent paint where the fire design calls for a rated structure
Stairs placement and balustrade choices
Stairs are the most used part of any mezzanine and the most often put in the wrong place. Put them where the traffic actually flows, at the end nearest the entry or the packing bench, not where they are easiest to bolt on.
- Straight flight where you have the run, a half-landing where you do not
- Industrial guardrail with a kickplate for storage decks
- Aluminium balustrade panels for offices, showrooms and anywhere a visitor sees the edge
- A pallet gate wherever a forklift loads the deck, never an open section of rail
Lighting and services under the floor
The underside of a mezzanine is a ceiling, and the space below it gets dark. Plan lighting for under the deck at design stage: LED battens fixed to the beams, wired before the plywood goes down so nothing is drilled later.
The beams also make a tidy route for power, data, compressed air and sprinkler drops. Fix services to the steel, not through the deck, so the system can still be unbolted and moved later.
The Altivo difference
Every idea above can be built from our standard kitset mezzanines with the right accessories, or as a custom mezzanine floor where the span, load or shape needs it. Kitsets are pre-engineered with a PS1 from a Chartered Professional Engineer, bolt together with no site welding, and can be extended a bay at a time as the design grows.
Stairs, guardrails, pallet gates and aluminium balustrade are made in our Te Rapa workshop to suit the floor.
Thinking about a mezzanine?
Sketch the layout you have in mind and put the platform size into the mezzanine configurator to see which modules build it and what it costs. Or send us the plan and get a quote back with the access and edge options marked up.
