Mezzanine Kitset Corner Extension (1-post) – 3600mm x 3600mm

Mezzanine Kitset Extension – 3600 x 3600mm (Corner Extension Module with 1 post)

Quickly expand your usable space with a high-quality, New Zealand-made Mezzanine Kitset System—designed for speed, simplicity, and cost efficiency.

The Altivo Modular Kitset Mezzanine System is ideal for anyone needing a fast, reliable way to add storage or workspace without committing to a fully customised build. In addition, multiple full-size & extension modules can be bolted on to suit the available space at time of initial installation, but these can also be added on at a later date.

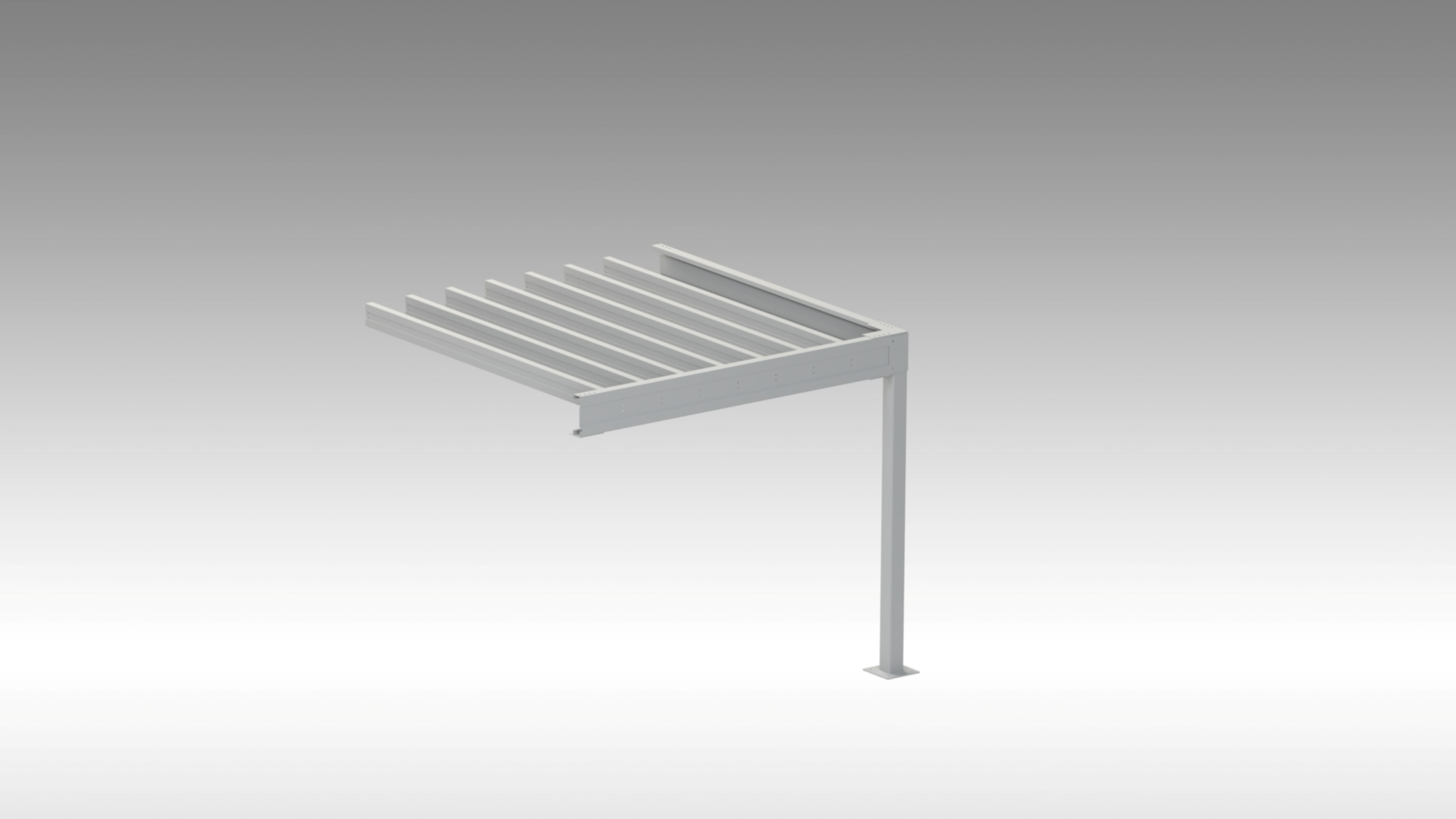

This standardised 3600mm x 3600mm Corner Extension Module is designed to add on to the Standard Kitset Modules to optimise your available space.

Corner Extension Modules are the most cost-effective extension modules, as they utilise the support of the surrounding modules and therefore only have one post and two main perimeter beams of their own.

Why Choose a Modular Kitset Mezzanine?

Our modular kitset mezzanines offer a faster, smarter, and more cost-effective alternative to fully custom mezzanine floors.

Benefits of a Kitset Module

• Faster delivery compared to custom-designed mezzanines
• Cost-effective solution with no lengthy design delays
• Pre-engineered to comply with New Zealand building standards
• Supplied consent-ready with a PS1 Producer Statement from a certified structural engineer
• Simple bolt-together assembly with no onsite welding required
• Relocatable and reusable as your operational needs change



What’s Included with Your Modular Kitset Mezzanine?

Your kitset includes a complete modular mezzanine system rated to a load capacity of 3kPa (300kg/m²), including:

• Factory-prepared primary structural components
• Flooring system
• All required fixings
• Assembly instructions for efficient onsite installation

Everything is supplied ready for streamlined assembly on site.



What’s Not Included?

The following items are not included as standard and can be purchased separately:

• Stairs
• Handrails
• Guardrails
• Safety gates

Accessories are available separately via the Altivo accessories range.



Flexible Where It Matters

Every space is different, which is why our modular mezzanine systems offer flexible configuration options.

Choose the platform height, flooring type, and finish that best suit your application, workspace, and operational requirements.



Modular Kitset vs Custom Mezzanine Floors

This product forms part of our Standard Module Range, developed specifically for fast turnaround times and excellent value.

However, if your project requires:

• Specific layouts or irregular footprints
• Integration with existing buildings or structures
• Higher load capacities
• Specialised operational requirements

…then a fully customised mezzanine solution may be the better option.

In addition to modular systems, Altivo also designs and delivers custom mezzanine floors tailored to your exact project requirements.



Lead Time & Delivery

Lead Time

Made to order within approximately 3–4 weeks.

Delivery

Supplied flat-packed for efficient transport and onsite assembly.





Important Information & Responsibilities



1. Scope of Supply

• This product is supplied as a fully structurally and seismically pre-engineered standardised kitset only.
• Unless expressly agreed in writing, Altivo does not provide site-specific design, installation, or certification.

2. Consents & Regulatory Approvals

• Any required building consents, permits, or approvals are the responsibility of the purchaser.
• Altivo can assist with documentation and coordination if required, at additional cost.

3. Fire & Compliance Requirements

• Any required compliance with fire regulations (including fire rating, means of escape, sprinkler systems [where fitted], and occupancy requirements) is the responsibility of the purchaser.
• Requirements vary depending on building use and location. Altivo can assist if engaged to do so, at additional cost.

4. Site Conditions & Structural Suitability

• The purchaser is responsible for confirming that the existing structure, foundations, and concrete slab are suitable for the imposed loads.
• Where required, a qualified engineer must verify site-specific conditions.

5. Installation Responsibility

• Installation is the responsibility of the purchaser or their contractor.
• Altivo accepts no responsibility for installation, workmanship, or site modifications unless installation is carried out under a separate contract with Altivo.

6. Loadings & Intended Use

• The mezzanine must only be used in accordance with the specified design loads and intended purpose.
• Any change of use (e.g. light storage to heavy storage, plant, or office use) may require further engineering and approvals.

7. Modifications & Alterations

• Any modification, substitution, or deviation from the supplied design or components is undertaken at the purchaser’s risk and may void any warranty and affect compliance.

8. Health & Safety Compliance

• The purchaser is responsible for ensuring compliance with all applicable health and safety legislation, including safe installation practices, edge protection, access (stairs/ladders), and ongoing use.

9. Producer Statements & Certification

• All modular kitset mezzanine floors are supplied consent-ready with a PS1 Producer Statement from a certified structural engineer.
• Construction monitoring, PS4 Producer Statements and Code Compliance Certificates (CCC) are not included unless specifically agreed in writing. These may be required to satisfy building consent conditions.

9. Professional Advice

• The purchaser should obtain independent professional advice (engineering, fire, regulatory) as required to ensure full compliance with local regulations and standards.
